Product Details:
|
Warranty: | 1 Year | Plastic Processed: | PET,PE,PP,LDPE,PVC |
---|---|---|---|
After-sales Service Provided: | Field Installation | Certification: | CE |
Color: | Blue/yellow/white/orange | Machine Type: | Hydraulic Driven |

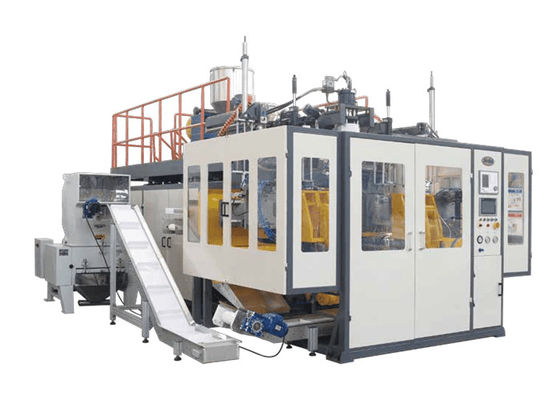

Name: | 220L Hollow Plastic Container PC Bottle Blow Molding Machine |
Performance | Unit | BM160 | BM230 |
Max.product volume | L | 160 | 230 |
Dry cycle | Pc/h | 300 | 280 |
Die head structure | Accumulating type | Accumulating type | |
Main screw diameter | mm | 100 | 120 |
Max. plasticizing capacity(PE) | kg/h | 240 | 350 |
Driving motor | Kw | 90 | 132 |
Accumulating volume | L | 18 | 24 |
Oil pump motor power | Kw | 22 | 22 |
Clamping force | KN | 800 | 900 |
Space between platen | mm | 500-1400 | 800-1800 |
Platen size W*H | mm | 1120*1200 | 1320*1600 |
Max. mould size | mm | 900*1450 | 1200*1800 |
Heating power of die head | Kw | 30 | 36 |
Machine dimension L*W*H | m | 7*3.5*4 | 8.2*3.5*5.5 |
Machine weight | T | 20 | 36 |
Total power | Kw | 172 | 230 |
CERTIFICATES
Our Products Have Passed Many Certificates.
FAQ
1. How soon can I get a quotation?
For most projects, once we know the necessary information about the recycled raw material, we can provide you with a quotation within 24 hours.
2. Can I have a customized design?
We design and construct each project according to customer's needs.
3. How do I know I can trust ordering from you?
Jwell is the top class manufacturer of plastic machinery in China.The first screw was made by our company(JIN HAI LUO) in 1978.We provide professional extruder and all kinds of extrusion line,such as pipe,sheet, profile, plate, film,blow moulding and recycling extrusion line.We have delivered our machines to over 170 countries.We also have overseas offices in many countries.Customers are satisfied with the machines and our service.
