JWELL HDPE PP DWC Pipe Making Machine Single Screw Extruder

Certification
China CHANGZHOU DYUN ENVIRONMENTAL TECHNOLOGY CO.,LTD certification
China CHANGZHOU DYUN ENVIRONMENTAL TECHNOLOGY CO.,LTD certification
Customer Reviews
Thanks very much for your perfect quality and VIP service, we will keep contract and do more business with you!

—— Audrey Vespe

I'm Online Chat Now

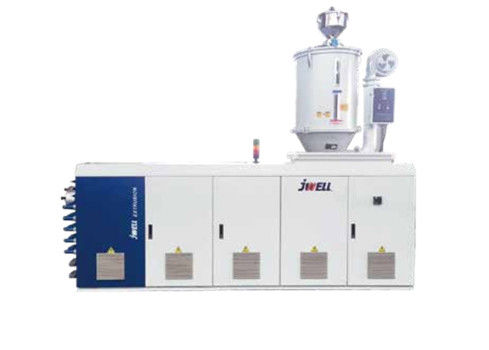

JWELL HDPE PP DWC Pipe Making Machine Single Screw Extruder

JWELL HDPE  PP DWC Pipe Making Machine Single Screw Extruder
JWELL HDPE  PP DWC Pipe Making Machine Single Screw Extruder

Large Image :  JWELL HDPE PP DWC Pipe Making Machine Single Screw Extruder

Product Details:
Place of Origin: China
Brand Name: JWELL
Certification: CE, ISO series
Model Number: JWS60/75/90/120-38,JWS45/65/75/90/120/150-33
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden pallet
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10+unit+per month

JWELL HDPE PP DWC Pipe Making Machine Single Screw Extruder

Description
Color: Customized Motor: Famous Brand
Material: PP PE Control: PLC
Screw: Single Screw
High Light:

280kw Single Extruder Screws

,

HDPE Extruder Screw Barrel

HDPE Single Extruder Screws And Barrels

Performance and advantage:
This extruder with the performance of high capacity and low consumption adopts a new designed screw. At the low temperature, the ideal mixing effect can be achieved, and the shearing effect is strictly controlled. It obtains an ideal uniform material temperature and avoids the phenomenon of defects in the inner wall of large diameter pipes.


38 Series Technical data
Model Screw diameter(mm) L/D ratio Main motor power(kw) Capacity(kg/h)  Center height
JWS60/40 60 40 90/110 360-450 1000
JWS75/38 75 38 132/160 400-650 1000
JWS90/38 90 38 250/280 800-1000 1150
JWS120/38 120 38 315/355 900-1200 1300





33 Series Technical data
Model Screw diameter(mm) L/D ratio Main motor power(kw) Capacity(kg/h) Center height
JWS45/33 45 33 18.5/22/30 50-80

1000

JWS65/33 65 33 45/55/75/90 120-200 1000
JWS75/33 75 33 75/90/110/132 200-350 1000
JWS90/33 90 33 110/132/160/185/250 350-550 1150
JWS120/33 120 33 220/280/315/355 700-900 1300
JWS150/33 150 33 355/400 1000-1300 1300



Note:The specifications are subject to change without prior notice.



About us



Changzhou Dyun Environmental Technology Co.,Ltd is a plant company of Jwell Machinery Co.,ltd which specialized in production of all kinds of plastic crusher, single screw pelletizing line, paraller twin screw pelletizing line, conical twin screw pelletizing line, PP,PE,PET crushing, washing and drying line, mixer, dryer, feeder and PVC compounding systems. All products have CE certification. Every product can push the field forwarder to enegy saving, convinence and environmentation. They give new life to plastic.



Dyun Environmental Technology Co., Ltd., the only environment-protection oriented modern subsidiary corporation of Jwell Machinery Co., Ltd., is specialized in environment protection machinery and the development, design, manufacture and sale of plastic recycling machine.

With more than 20 years of development and experience, our equipment has evolved from simplicity to diversity, and we have more than 30 inventions and innovations, and our product struc- ture is increasingly complete. The main products of Dyun are plastic crusher series, single-shaft series, double-shaft shred- der series, four-shaft shredder series, single-screw pelletizing machinery, twin-screw pelletizing machinery, and complete recycling equipment for waste plastic washing line, waste tire reusing line, waste refrigerator (household appliance) crushing line, and waste circuit board recycling line





After-sale service:



DYPS pipe crusher 2

  • The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.
  • Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible
  • Buyer can send engineers to our JWELL company for training
  • We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English
  • We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer



CERTIFICATES



Our Products Have Passed Many Certificates.



1500kg h PET Single Screw Pelletizing Machine 3



FAQ



1. How soon can I get a quotation?



For most projects, once we know the necessary information about the recycled raw material, we can provide you with a quotation within 24 hours.





2. Can I have a customized design?



We design and construct each project according to customer's needs.





3. How do I know I can trust ordering from you?



Jwell is the top class manufacturer of plastic machinery in China.The first screw was made by our company(JIN HAI LUO) in 1978.We provide professional extruder and all kinds of extrusion line,such as pipe,sheet, profile, plate, film,blow moulding and recycling extrusion line.We have delivered our machines to over 170 countries.We also have overseas offices in many countries.Customers are satisfied with the machines and our service.
