JWELL PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine

JWELL  PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine
JWELL  PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine JWELL  PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine JWELL  PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine JWELL  PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine

Large Image :  JWELL PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine

Product Details:
Place of Origin: CHINA
Brand Name: JWELL&DYUN
Certification: CE
Model Number: JWL45/65/90/120/150/180/200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet with film
Delivery Time: 30 work days
Payment Terms: T/T, L/C,Cash
Supply Ability: 10 sets per month

JWELL PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine

Description
Color: Customized Capacity: 100kg/h-1000kg/h
Material: PP,HDPE,LDPE,PS,PA,ABS,PET Screw: Single Screw
Cutting Type: Water Ring Cutting Cooling: Water Cooling
Name: PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine
High Light:

400kg/h pvc pelletizing machine

,

single screw pvc pelletizing machine

,

400kg/h plastic pelletizer

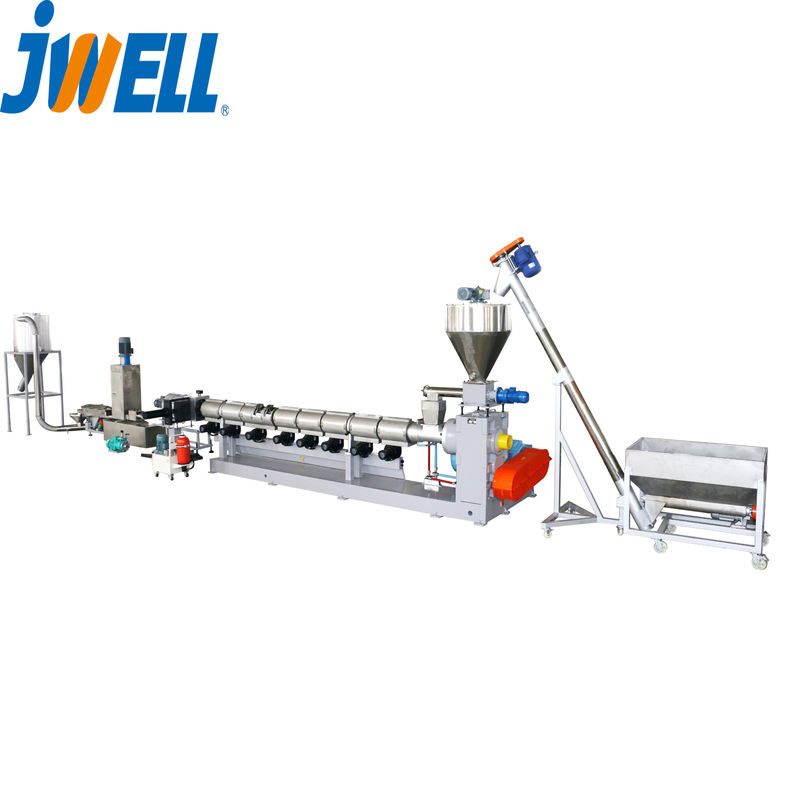

PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine



Description:

This pelletizing machine has special screw design and different configuration, it is suitable for the recycling of PP, PE, PS, ABS,PC, etc. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel have been special treated so that the screw and barrel are wearable, and they have very high mixing efficiency and the production capacity is high.The extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output are more stable and the pellets are more uniform

  Model Screw Dia. L/D Screw Speed Main Motor Power Output
  JWL45 45 25-35 20-100 11-15 30-50
  JWL65 65 25-35 20-100 30-37 60-120
  JWL90 90 25-35 20-90 45-55 180-200
  JWL120 120 25-35 20-75 75-110 250-350
  JWL150 150 25-35 20-75 110-160 350-500
  JWL160 160 25-35 20-70 132-185 400-550
  JWL180 180 25-35 20-70 200-250 600-800
  JWL200 200 25-35 20-60 250-315 800-1100

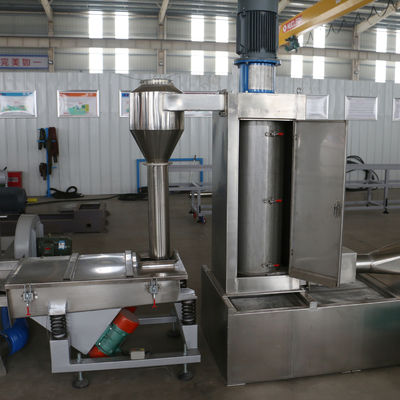

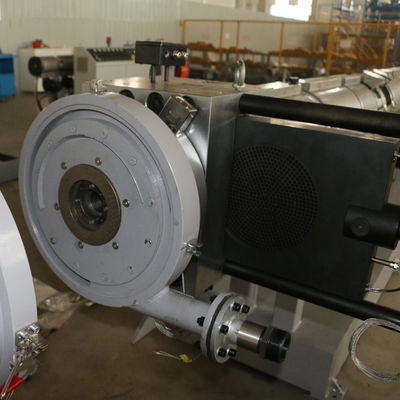

Single-Screw Pelletizing Machine for HDPE 1Single-Screw Pelletizing Machine for HDPE 2Single-Screw Pelletizing Machine for HDPE 3







After-sale service:



DYPS pipe crusher 2

  • The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.
  • Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible
  • Buyer can send engineers to our JWELL company for training
  • We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English
  • We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer



CERTIFICATES of Pelletizing Machine



Our Products Have Passed Many Certificates.



1500kg h PET Single Screw Pelletizing Machine 3
